AirThings BLE Sensors

The airthings_wave_plus and airthings_wave_mini sensor platforms lets you track the output of AirThings Bluetooth Low Energy devices.

This component will track radon, airborne chemicals, CO2, temperature and humidity and others depending on the device sensors.

Device Discovery

AirThings devices can be found using the airthings_ble ble scanner.

To find out your device’s MAC address, add the following to your ESPHome configuration:

logger:
  level: DEBUG # Required for the tracker to show the device

esp32_ble_tracker:
airthings_ble:

The device will then listen for nearby devices, and display a message like this one:

[D][airthings_ble:019]:
Found AirThings device Serial: 123456789 (MAC: XX:XX:XX:XX:XX:XX)

Once the device is found, remove the airthings_ble device tracker from your configuration and take note of the device MAC address, and use it when configuring a sensor below.

Supported Devices

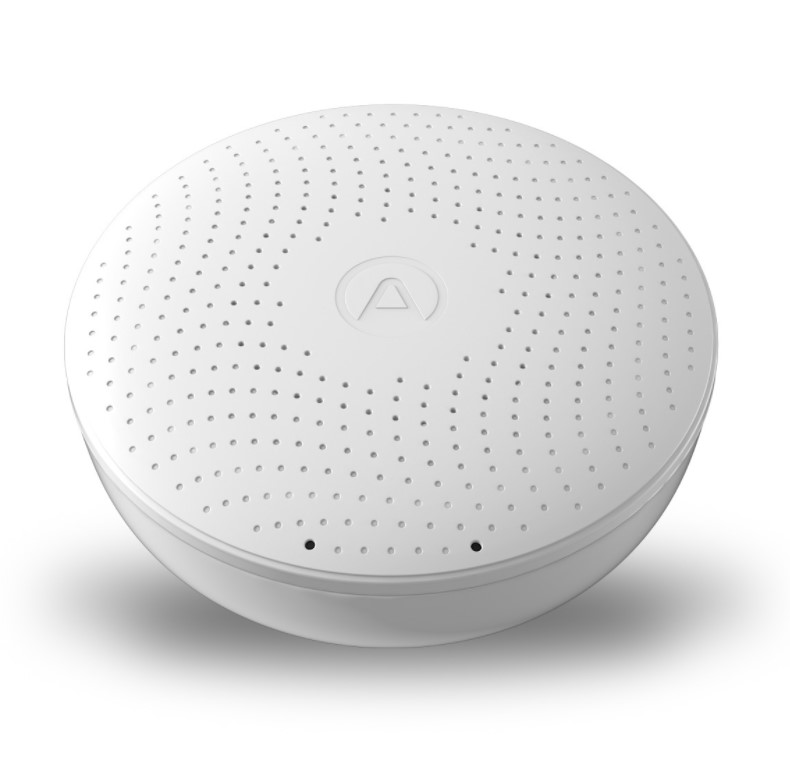

Airthings Wave Plus Sensor

AirThings Wave Plus tracks radon (24h and long term), airborne chemicals, CO2, temperature, atmospheric pressure and humidity.

Configuration example

sensor:
  - platform: airthings_wave_plus
    name: wave_plus
    ble_client_id: airthings01
    update_interval: 5min # default
    battery_update_interval: 24h # default
    temperature:
      name: "WavePlus Temperature"
    radon:
      name: "WavePlus Radon"
    radon_long_term:
      name: "WavePlus Radon Long Term"
    pressure:
      name: "WavePlus Pressure"
    humidity:
      name: "WavePlus Humidity"
    co2:
      name: "WavePlus CO2"
    tvoc:
      name: "WavePlus VOC"
    illuminance:
      name: "WavePlus ambient light"
    battery_voltage:
      name: "WavePlus Battery Voltage"

ble_client:
  - mac_address: XX:XX:XX:XX:XX:XX
    id: airthings01

esp32_ble_tracker:

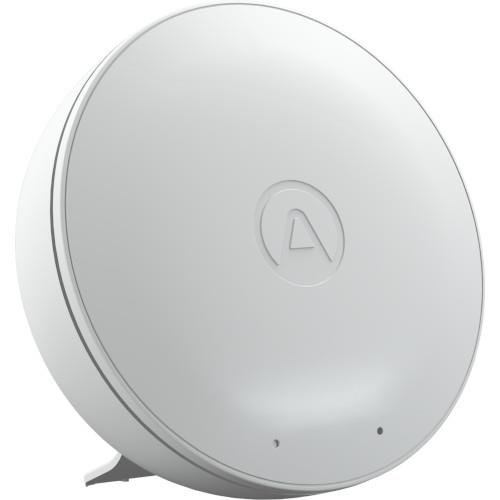

Airthings Wave Mini Sensor

AirThings Wave Mini tracks airborne chemicals, temperature, pressure and humidity.

Configuration example:

sensor:
  - platform: airthings_wave_mini
    ble_client_id: airthingsmini
    update_interval: 5min # default
    battery_update_interval: 24h # default
    temperature:
      name: "WaveMini Temperature"
    pressure:
      name: "WaveMini Pressure"
    humidity:
      name: "WaveMini Humidity"
    tvoc:
      name: "WaveMini VOC"
    battery_voltage:
      name: "WaveMini Battery Voltage"

ble_client:
  - mac_address: XX:XX:XX:XX:XX:XX
    id: airthingsmini

esp32_ble_tracker:

Note

The sensor uses active polling of devices every 5 minutes as per the device reported internal refresh timeout.

Note

Battery-voltage reporting defaults to once every 24 hours in order to reduce BLE traffic (obtaining the battery voltage requires quite a few BLE commands/responses); if you wish to have it reported more frequently configure the battery_update_interval. The main sensor update_interval controls the overall polling frequency so setting the interval for the battery voltage to a lower value will result in the battery voltage being reported once per polling interval.

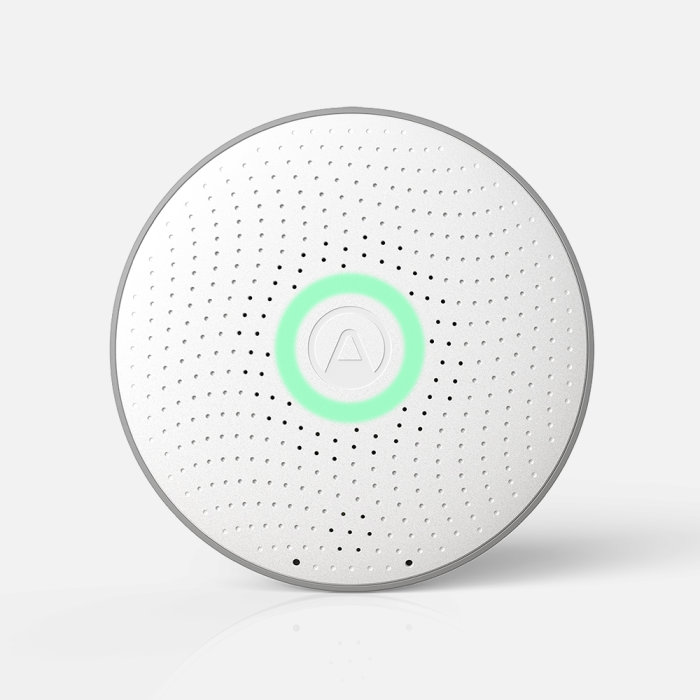

Airthings Wave Radon (Gen 2) Sensor

AirThings Wave Radon (Gen 2) tracks radon (24h and long term), temperature, atmospheric pressure and humidity.

Note

The Wave Gen2 device does NOT support CO2 or TVOC sensors - only radon, temperature, pressure, humidity, and illuminance are available.

Configuration variables

device_type (Optional): Specifies the type of AirThings Wave device. Defaults to WAVE_PLUS.
- WAVE_PLUS : For AirThings Wave Plus devices (supports all sensors including CO2 and TVOC)
- WAVE_GEN2 : For AirThings Wave Radon Gen 2 devices (does not support CO2 or TVOC sensors)

Configuration example

sensor:
  - platform: airthings_wave_plus
    name: wave_gen2
    ble_client_id: airthings01
    device_type: WAVE_GEN2  # Required for Wave Gen2 devices (default is WAVE_PLUS)
    update_interval: 5min # default
    battery_update_interval: 24h # default
    temperature:
      name: "WaveG2 Temperature"
    radon:
      name: "WaveG2 Radon"
    radon_long_term:
      name: "WaveG2 Radon Long Term"
    pressure:
      name: "WaveG2 Pressure"
    humidity:
      name: "WaveG2 Humidity"
    illuminance:
      name: "WaveG2 ambient light"
    battery_voltage:
      name: "WaveG2 Battery Voltage"

ble_client:
  - mac_address: XX:XX:XX:XX:XX:XX
    id: airthings01

esp32_ble_tracker:

Battery Level Reporting

If you wish to have the ‘percentage of battery life remaining’ reported as a sensor, you can make use of the Copy Sensor component.

The examples below are based on standard alkaline-chemistry batteries; if you use other types of batteries you may need to adjust the reference voltages to obtain a proper 0-100% scale. The voltage references were chosen to closely match the 0-100% range displayed by the AirThings mobile app.

sensor:
  - platform: airthings_wave_mini
    ble_client_id: airthingsmini
    battery_voltage:
      id: bv
      name: "WaveMini Battery Voltage"
  - platform: copy
    source_id: bv
    name: "WaveMini Battery Level"
    unit_of_measurement: "%"
    device_class: battery
    accuracy_decimals: 0
    filters:
      - calibrate_linear:
        - 2.7 -> 0
        - 4.5 -> 100

sensor:
  - platform: airthings_wave_plus
    ble_client_id: airthings01
    battery_voltage:
      id: bv
      name: "WavePlus Battery Voltage"
  - platform: copy
    source_id: bv
    name: "WavePlus Battery Level"
    unit_of_measurement: "%"
    device_class: battery
    accuracy_decimals: 0
    filters:
      - calibrate_linear:
        - 2.2 -> 0
        - 3.1 -> 100
