BMP280 Temperature+Pressure Sensor

The bmp280 sensor platform allows you to use your BMP280 (datasheet, Adafruit_) temperature and pressure sensors with ESPHome. The I²C or SPI is required to be set up in your configuration for this sensor to work.

figure.lazy{display:none}

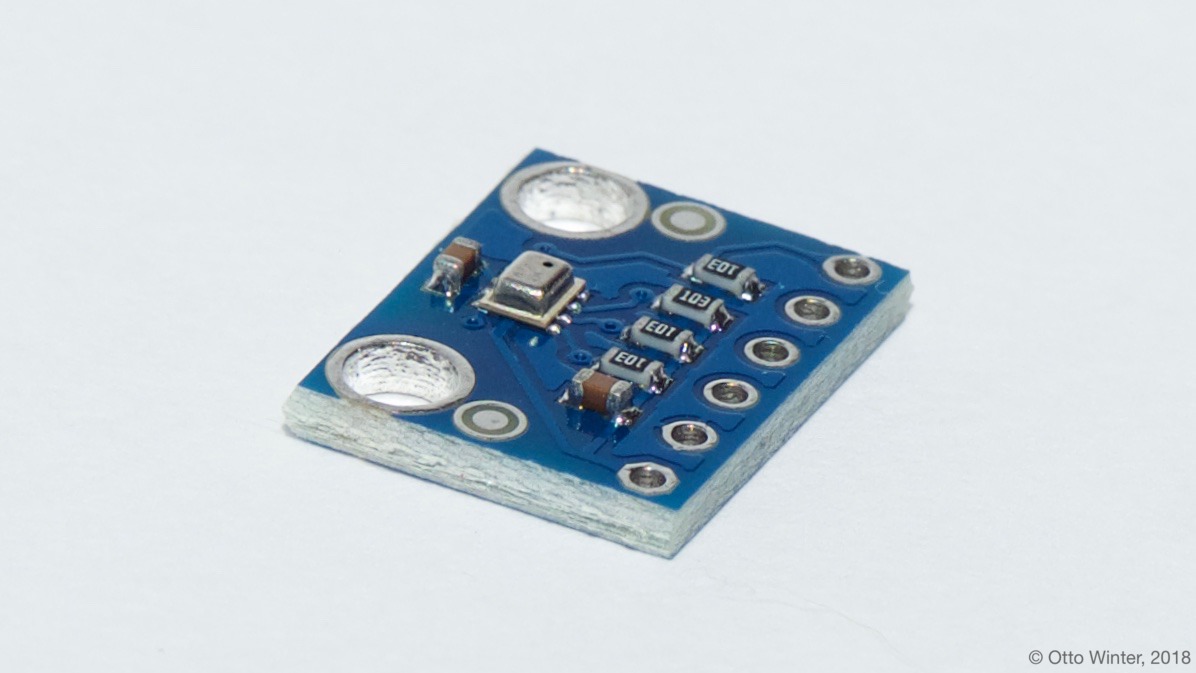

BMP280 Temperature and Pressure Sensor.

# Example configuration entry I2C
sensor:
  - platform: bmp280_i2c
    temperature:
      name: "Outside Temperature"
      oversampling: 16x
    pressure:
      name: "Outside Pressure"
    address: 0x77
    update_interval: 60s

# Example configuration entry SPI
sensor:
  - platform: bmp280_spi
    temperature:
      name: "Outside Temperature"
      oversampling: 16x
    pressure:
      name: "Outside Pressure"
    cs_pin: GPIO5
    update_interval: 60s

Configuration variables

temperature (Optional): The information for the temperature. sensor
- oversampling (Optional): The oversampling parameter for the temperature sensor. See Oversampling Options.
- All other options from Sensor.
pressure (Optional): The information for the pressure sensor.
- oversampling (Optional): The oversampling parameter for the pressure sensor. See Oversampling Options.
- All other options from Sensor.
iir_filter (Optional): Set up an Infinite Impulse Response filter to increase accuracy. One of OFF, 2x, 4x, 16x. Defaults to OFF.
update_interval (Optional, Time): The interval to check the sensor. Defaults to 60s.

I²C Configuration variables:

address (Optional, int): Manually specify the I²C address of the sensor. Defaults to 0x77. Another address can be 0x76.

SPI Configuration variables:

cs_pin (Optional, Pin Schema): The CS pin of the BMP280 sensor.

figure.lazy{display:none}

Pins on the BMP280. Only VCC, GND, SCL, and SDA need to be connected.

Oversampling Options

By default, the BMP280 sensor measures each value 16 times when requesting a new value. You can, however, configure this amount. Possible oversampling values:

NONE (value is skipped)
1x
2x
4x
8x
16x (default)
