STTS22H Temperature Sensor

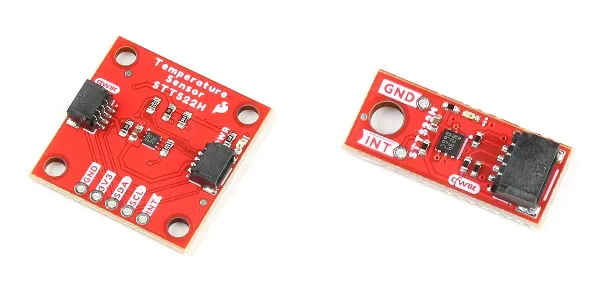

The stts22h sensor platform allows you to use a STTS22H temperature sensor
(datasheet) with ESPHome. This is a low-power,
high-accuracy digital temperature sensor with ±0.5°C accuracy (typical at 25°C) and a temperature range
from -40°C to +125°C.
The I²C Bus is required to be set up in your configuration for this sensor to work.
# Example configuration entry
sensor:
- platform: stts22h
name: "STTS22H Temperature"
address: 0x3C
update_interval: 60sConfiguration variables
i2c_id (Optional, ID): Manually specify the ID of the I²C Bus if you want to use multiple I²C buses.
address (Optional, int): The I²C address of the sensor. Defaults to
0x3C. The address is determined by the ADDR pin configuration on the sensor. Possible addresses:0x38,0x3C,0x3E,0x3F.update_interval (Optional, Time): The interval to check the sensor. Defaults to
60s.All other options from Sensor.
