Texas Instruments BQ27220 battery fuel gauge

The bq27220 platform allows you to use a BQ27220 single-cell Li-Ion battery fuel gauge (datasheet, Technical Reference Manual) in ESPHome. It uses the I²C Bus for communication. The default I²C address is 0x55.

The BQ27220 continuously tracks battery state-of-charge, voltage, current, temperature, and health without requiring an external current-sense resistor. It uses Texas Instruments’ Impedance Track™ algorithm to provide accurate state-of-charge estimation across varying charge and discharge profiles.

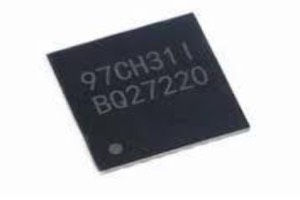

Texas Instruments BQ27220 battery fuel gauge.

Configuration

# Example configuration entry
sensor:
  - platform: bq27220
    battery_level:
      name: "Battery"
    voltage:
      name: "Battery Voltage"

Configuration Variables

address (Optional, int): The I²C address of the device. Defaults to 0x55.
update_interval (Optional, Time): How often to poll the sensor. Defaults to 60s.
battery_level (Optional): State of charge in percent (%).
- All other options from Sensor.
voltage (Optional): Battery voltage in volts (V).
- All other options from Sensor.
current (Optional): Instantaneous current in amperes (A). Positive when charging, negative when discharging.
- All other options from Sensor.
temperature (Optional): Battery temperature in degrees Celsius (°C).
- All other options from Sensor.
remaining_capacity (Optional): Remaining capacity in milliampere-hours (mAh).
- All other options from Sensor.
full_charge_capacity (Optional): Full charge capacity in milliampere-hours (mAh).
- All other options from Sensor.
time_to_empty (Optional): Estimated time until the battery is empty, in minutes. Reports unknown when the battery is not discharging.
- All other options from Sensor.
state_of_health (Optional): Battery health as a percentage of original capacity (%).
- All other options from Sensor.
