M5Stack 4-Relay Switch

The m5stack_4relay component controls the four relays of the M5Stack 4-Relay Unit over I²C. Each relay switches up to 250 V AC or 28 V DC at 10 A, and the unit’s LEDs follow the relays.

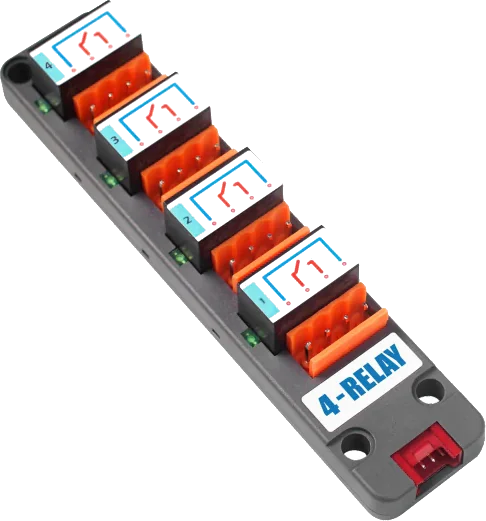

M5Stack 4-Relay Unit

# Example configuration entry
m5stack_4relay:
  id: relay_hub

switch:
  - platform: m5stack_4relay
    name: "Relay 1"
    channel: 1
  - platform: m5stack_4relay
    name: "Relay 2"
    channel: 2

Hub configuration variables

• id (Optional, ID): Manually specify the ID used for code generation.
• address (Optional, int): The I²C address of the unit. Defaults to 0x26.
• i2c_id (Optional, ID): The I²C bus to use. Required with more than one bus.

Switch configuration variables

• channel (Required, int): The relay to control, 1 to 4.
• m5stack_4relay_id (Optional, ID): The unit the relay belongs to. Required with more than one unit.
• restore_mode (Optional): Defaults to DISABLED. The unit keeps its relays while it stays powered, so after a reboot of the ESP a switch shows the relay as it is instead of changing it. Set one of the other restore modes to drive the relay at boot.
• All other options from Switch.
